Tubular Flocculator

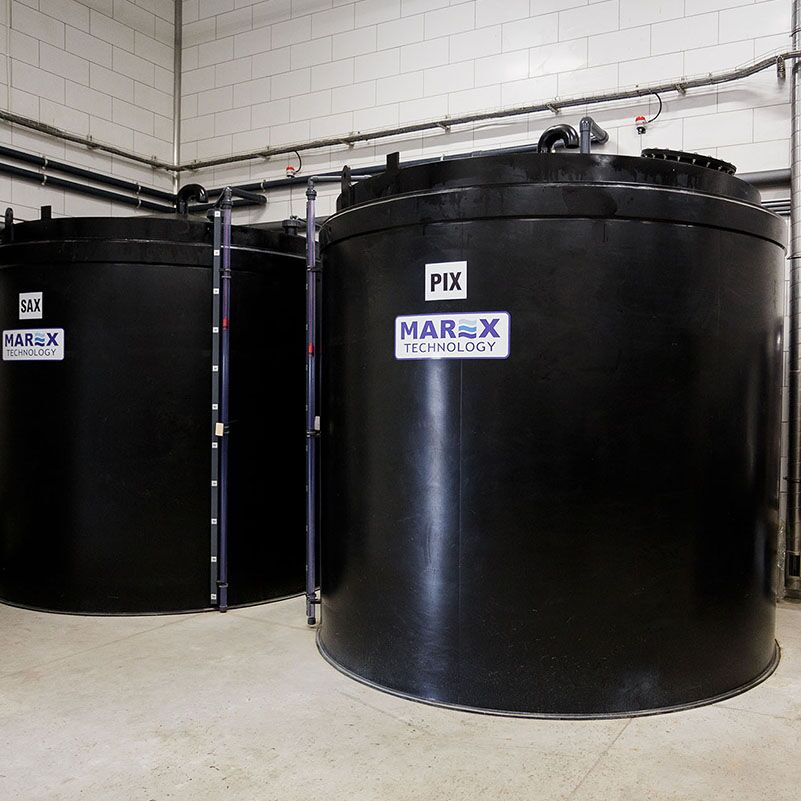

Storage tanks for chemical reagents

The tank is made of acid-resistant steel or plastic. Its capacity depends, among other things, on the performance of the vacuum cleaner, the size of the room and the need for emptying.

Principle:

The purpose of the Poflotation sludge tank is to homogenize and accumulate the afterflotation sludge, which will be directed to the sludge Dewatering station in the downstream parts. The tank will also be able to mix the post-flotation sludge with deposits that are excessive from the biological treatment plant.

Equipment:

The tank is equipped with a paddle stirrer to prevent the sludge from freezing. The agitators operate in automatic mode.

Advantages:

  • Easy access to mechanical parts
  • Simple operation
  • Manufacture from chemically resistant or acid-resistant materials
Category:
Zapytaj naszego doradcy

DO YOU HAVE ANY QUESTIONS? Help

Having trouble choosing the right product? Write to us or call. Our experienced traders will help you make the right decision.

They are here to help you choose the right product or to solve a technical problem. If you have any questions about our company or offer, please feel free to contact us.

CONTACT US


Tel:
 + 48 24 276 13 80

E-mail:
 info@marextechnology.com

Address: Ul. Płońsk 10,
09-210 Drobin, Poland

Not sure what to choose? Contact us-we will jointly select products that completely meet your expectations.
Send us an email and we will contact you shortly.

WRITE A MESSAGE

    Aby wysłać wiadomość, rozwiąż działanie*
    (Ochrona antyspamowa)

    Related products

    Polylecrolimus Preparation Station

    Polymers supplied in a loose or emulsion form, before being applied to the waste water treatment process, require devices preparing their solution with the appropriate parameters. Depending on the technological requirements of the property and the individual needs of the customer, Marex Technology has in its offer:

    Semi-automatic stations for preparation of Polyelecrolimus

    Automatic stations for preparation of Polyelecrolimus

    • Flow-through stations for preparation of Polyelecrolimus 3-cell

    • Flow-through preparation stations of Polyelecrolimus round

    • A stacking station for the preparation of Polylecrolimus

    The two-storey unit is made of 316L acid-resistant steel using components from leading manufacturers. The device is used to precisely fill the chamber with water and polyester powder and to dissolve and mix the ingredients perfectly. The station is operating in automatic mode, resulting in a continuous cycle of preparation and administration of Polylecrolimus. On the first floor a stirrer with motor is mounted, then a Polylecrolimus reservoir is mounted with a worm-shaped and conical funnel for hydration of polylecrolimus. Two solenoid valves are installed on this floor for automatic water feeding. A pressure transmitter is mounted on the lower part I of the floor for precise water filling and polyelecrolimus in the working chamber and the floor of the automatic chemistry station. In the tank under the I-floor, a stirrer with SIEMENSA motor is fitted with an electric flap valve Ø 70 by GEORGA FISHERA, suction lance for flocculant dosing pump and CERABAR pressure transducer for minimum/maximum signalling. Capacity of automatic Stacking station: 0.5-1.5 m3/h

    Tubular Flocculator

    Tubular Flocculator-It is used for chemical precipitation of pollutants from wastewater by means of coagulants and flocculants, correction of pH and formation of larger, easily separable agglomerates, so-called. The flokuł. Tubular flocculators provide optimum dispersion of larger particles, which then flow to the flotators or settlers. The Flocculator design provides sufficient time for the mixing of wastewater and provides optimum conditions for the formation of large flocuents, without the need for mechanical mixing.

    Equipment:

    • Flow meter
    • Automatic gate valve for regulating the flow of chemistry
    • Dosing nipple for chemical reagents
    • Appropriate sensors to control the processes

    Advantages

    • Construction to accelerate the flow of wastewater
    • Made from materials resistant to aggressive wastewater and chemical agents

    Construction:

    Through pipe of appropriate length and diameter. The built-in sockets allow for the connection of chemical agents and pH probes, and the corresponding ports allow to control the process overlap after each of the measures. The Flocculator design allows to increase the flow velocity of the liquid for optimum dispersion of chemistry in its respective sections.

    Flotator

    The flotator consists of a tank in which the flotation process is carried out, on the bottom of which there are small-body diffusers, and from the foam collection system. The precision of the Flotator basin and the method of producing bubbles determine the effectiveness of the flotation, because it is very important that the liquid in the fleet is in laminar and not turbulent flow conditions. This ensures that the lint of the substances that have formed at an earlier stage of coagulation is not disrupted. A well-constructed and constructed flotator therefore enables better technological parameters, i.e. savings on chemicals dispensed in the purification process. This modern device is also metering, allowing its integration with data transmission systems.
