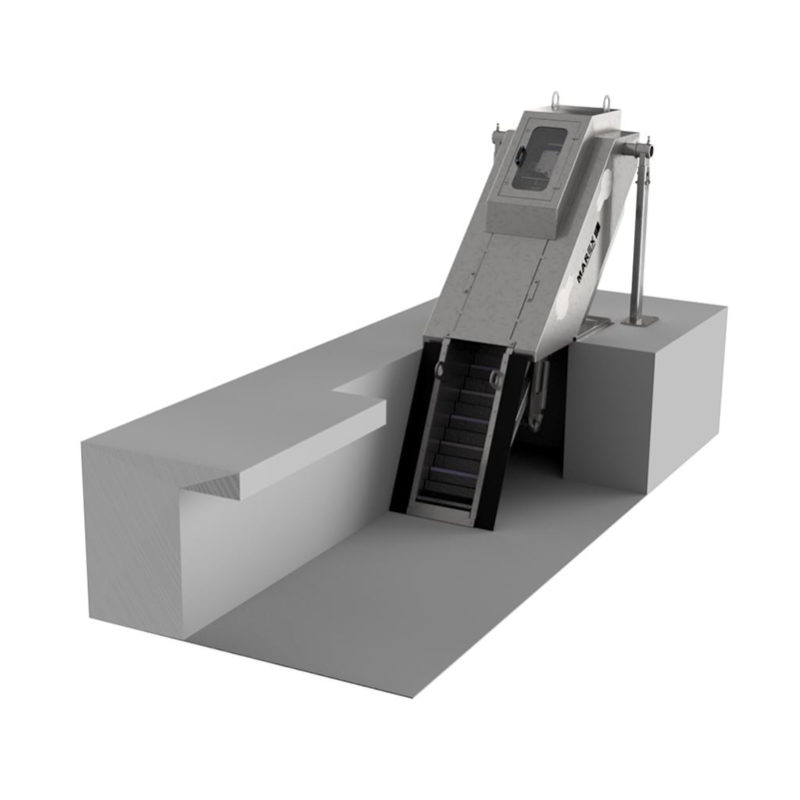

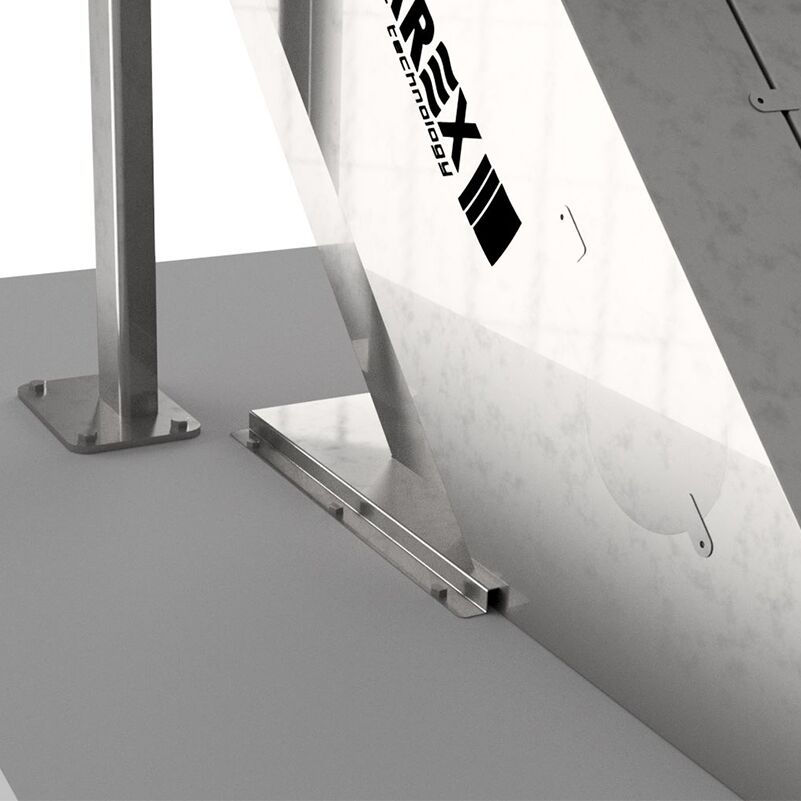

Stair lattice

Stair grilles are designed for thorough purification – separation from industrial and municipal wastewater, large and medium-sized pollutants (waste). Then the mechanical loading of the waste into the transport device or to the garbage container is carried out.

The grille can be installed in the ducts of sewage pumping stations and sewage treatment plants in buildings intended for grat.

Category:
Zapytaj naszego doradcy

DO YOU HAVE ANY QUESTIONS? Help

Having trouble choosing the right product? Write to us or call. Our experienced traders will help you make the right decision.

They are here to help you choose the right product or to solve a technical problem. If you have any questions about our company or offer, please feel free to contact us.

CONTACT US


Tel:
 + 48 24 276 13 80

E-mail:
 info@marextechnology.com

Address: Ul. Płońsk 10,
09-210 Drobin, Poland

Not sure what to choose? Contact us-we will jointly select products that completely meet your expectations.
Send us an email and we will contact you shortly.

WRITE A MESSAGE

    Aby wysłać wiadomość, rozwiąż działanie*
    (Ochrona antyspamowa)

    Related products

    sito łukowe

    Arc Sieve

    A sieve designed thanks to many years of experience in various industries. The filtered medium is given to the flow chamber at the top of the arc filter.

    Principle:

    After overflow of the flow chamber, the medium flows into the ARC cartridge (parabolic sieve, curved screen) made from the slotted sieve and through the gaps in the siting flows into the drain chamber at the bottom of the arc filter. The solid parts stuck through the parabolic sieve slots slip downward under the influence of gravity and the arch shape of the sieve.

    Equipment:

    • Flow Chamber
    • Parabolic slotic Sieve
    • Outflow Chamber

    Advantages:

    • Very simple operation
    • No electricity demand

    Cylindrical sieve

    The device is used for sewage treatment of solid contaminants of a size exceeding 0.5 mm. Completely made of acid-resistant materials.

    Principle:

    Sewage (gravity or pump) is brought into the interior of the cylindrical sieve. The Skratki is retained in the trough of the sieve and the separated liquid flows gravitationally to the outside of the device. Cleaning knives collect particles greater than 0, 5mm, which are routed to the part of the treatment plant responsible for waste management. The machine is working until the desired liquid level is obtained, followed by reversing the direction of movement of the drum and automatically attaching the spray nozzles – the cleaning process. The operation of the cylindrical separator is in automatic mode.

    Equipment:

    • Rotary drum made of cylindrical trapezo rods with a clearance of 0.5 mm
    • Drive unit
    • Pressurized Central washing system

    Advantages:

    • Excellent pre-treatment of wastewater
    • Low power consumption
    • High effectiveness of sieve cleaning (in automatic mode)
    Oddzielacz z napływem wewnętrznym

    Separator with internal inflow

    The main element of the machine is the cylindrical body embedded on the carrier frame. A sieve driven by a geared motor is embedded in the body. Inside, the body is made to get the best working conditions.

    Principle:

    The injected feed is picked up and headed upwards. During the rotation, the water flows through the sieves into the sewage trough down to the sewer trough located at the bottom of the cylindrical body. The dewatering load is routed to the outlet at the top. For better working conditions inside the machine, a water sprinkler controlled by an solenoid valve was mounted.
    filtr taśmowy

    Belt Filter

    The belt filter, currently considered the world's most efficient and cheapest in operation, is a device for the removal of slurries from wastewater and simultaneous dewatering of sediment.

    Principles of Operation:

    The process of removing slurries consists of leaching sludge during transport on a filter net, from which the sludge is discharged into the screw thickener by compressed air. The dehydrated sludge has low humidity (often below 70) which facilitates further disposal.

    Equipment:

    • Air blower for blow belt
    • Hot water Washing System

    Advantages

    • Reducing the consumption of chemicals compared to Rotositami
    • No servicing, except maintenance only 1-2 hours per week
