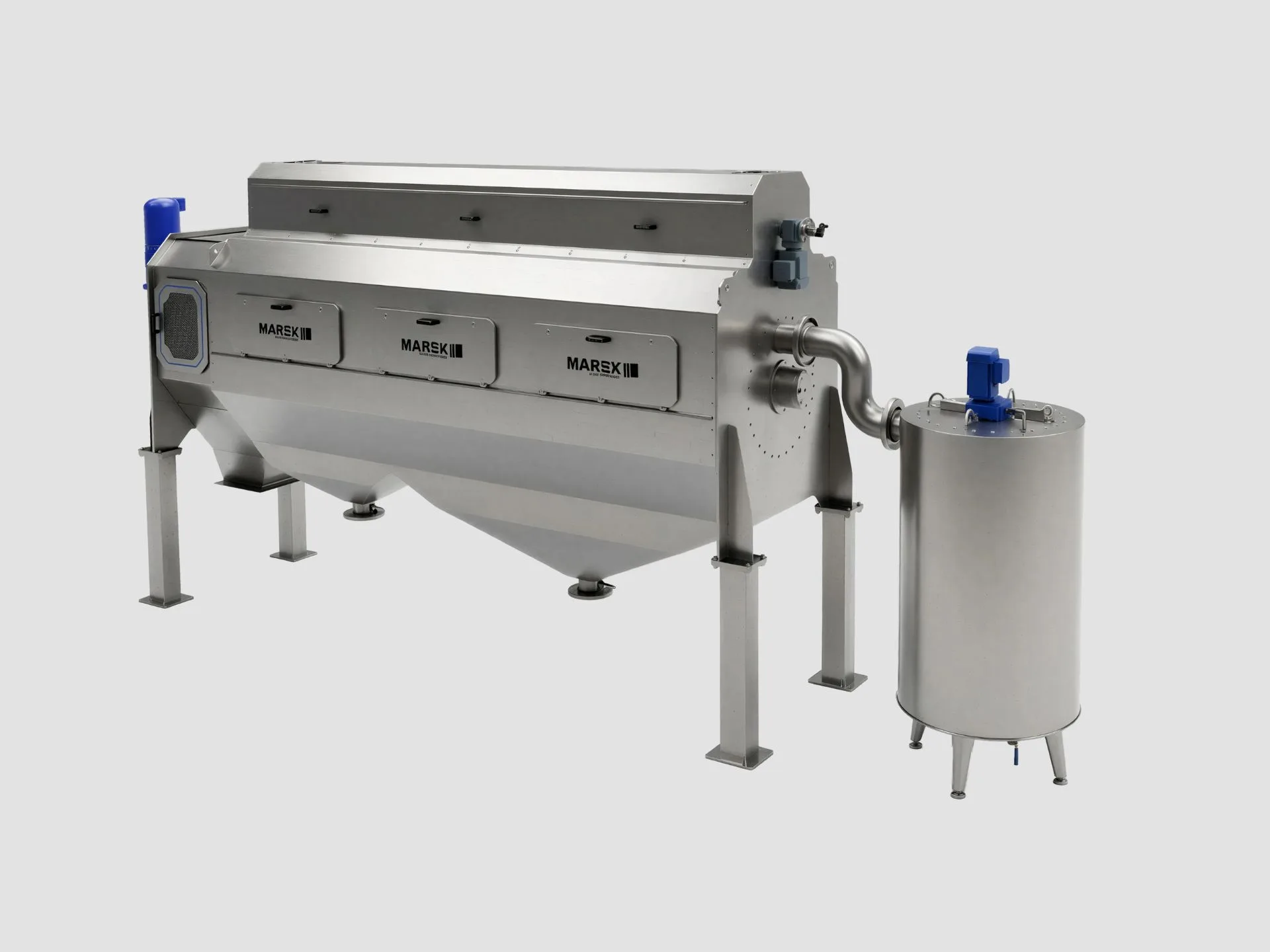

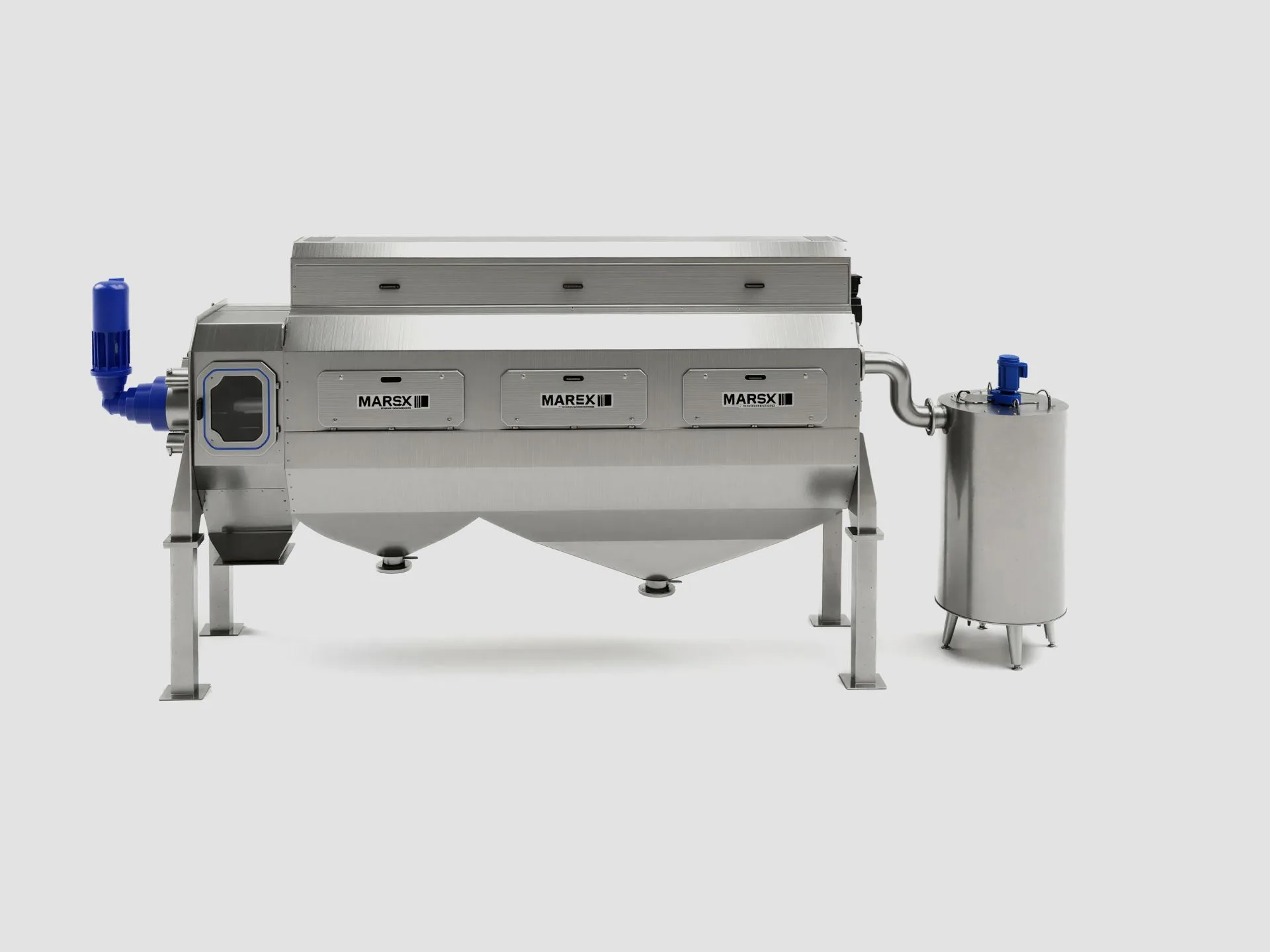

Screw Press

Higher dewatering performance at the same throughput.

Data Sheet

The screw press uses advanced screen and auger technology to achieve higher dewatering levels at the same flow rate. In municipal and industrial wastewater treatment plants, it is possible to increase the dewatering degree by up to 10% or boost the screw press capacity by up to 30%.

The fully automated washing system cleans the screen basket without interrupting the dewatering process, and significantly reduces wash water consumption at the same time.

Equipment and Features

Cylindrical screen basket
Auger screw with gear motor
Fully automated washing system (separate drive)
Drip tray and sludge outlet
Advanced screen and auger technology
Continuous operation at 0.1–1 rpm

Advantages

Higher dewatering at the same flow rateUp to +10% dewatering degreeUp to +30% capacityBasket cleaning without process interruptionReduced wash water consumption

Zapytaj o to urządzenie

Download datasheet (PDF)

Technical Specifications

Screw press models
Model	Max. capacity [kg/h]*	Nom. capacity – digested sludge [kg/h]*	Nom. capacity – aerobically stabilised sludge [kg/h]*	Installed power at 0.1–1 rpm [kW]
MX/PŚ 400	160	80	80-100	0,75
MX/PŚ 600	390	160	160-200	2,2
MX/PŚ 700	490	250	250-300	3
MX/PŚ 800	665	350	350-400	4
MX/PŚ 900	830	400	400-450	4
MX/PŚ 900 XL	950	450	450-500	5,5
MX/PŚ 1000	1080	550	550-600	5,5
MX/PŚ 1200	1360	750	750-800	5,5
MX/PŚ 1300	1535	900	900-950	7,5
