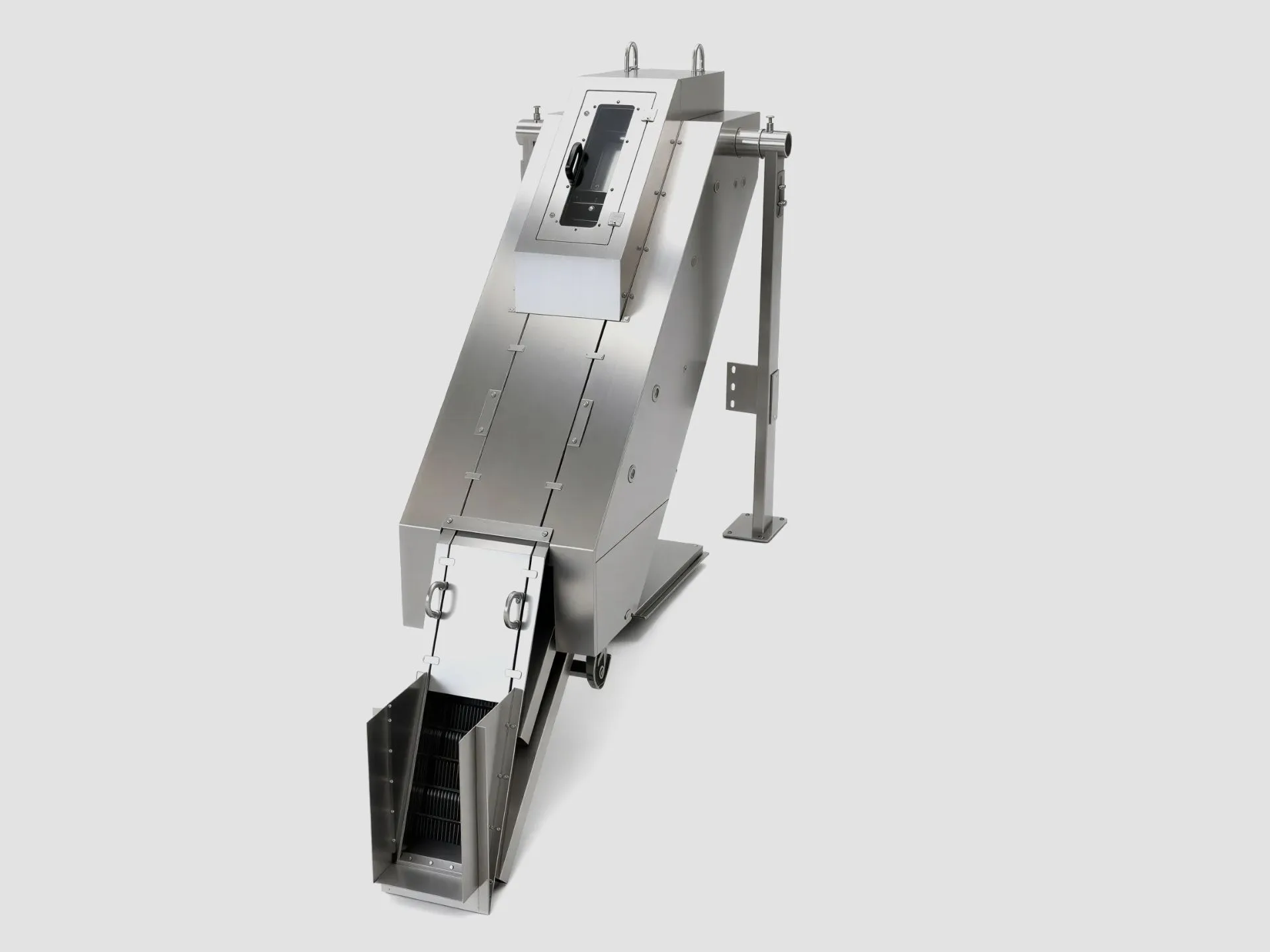

Step Screen

A cyclic motion of chain-mounted steps lifts large solids out of the wastewater and feeds them to downstream equipment.

Datasheet

The step screen is used in the mechanical stage of a wastewater treatment plant to remove solids of relatively large size (textiles, foils, municipal waste). It protects the rest of the process line against damage and clogging.

The screen works through a cyclic motion of steps mounted on a chain, which lift solids out of the flowing water and feed them to downstream equipment. Hook spacing and density can be matched to the required degree of screening.

An advantage of the screen is self-cleaning of the filtering elements by a rotating brush.

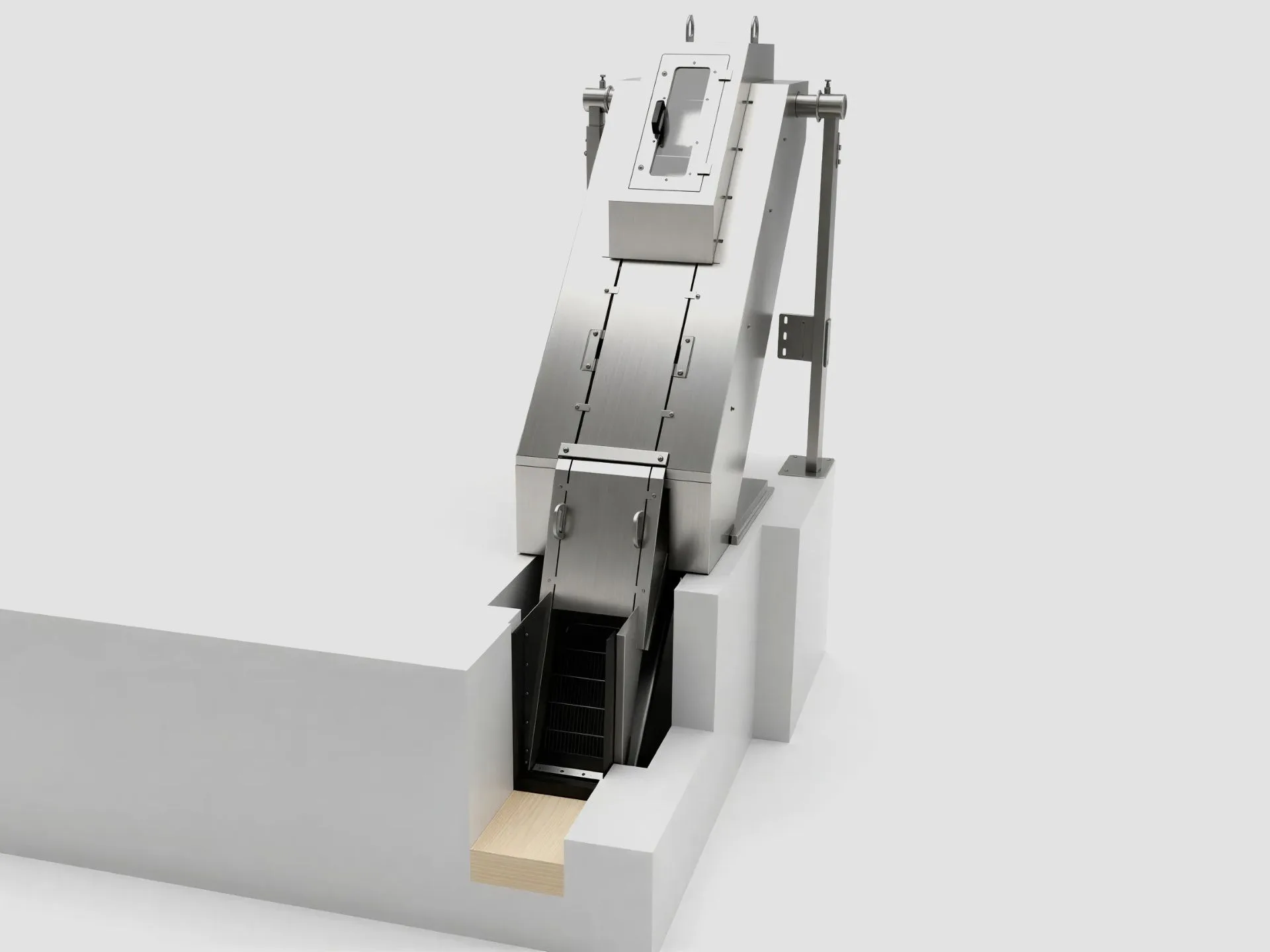

The screen can be installed in deep and wide channels as well as in pumping and sewage wells with little space for installation.

Features and Equipment

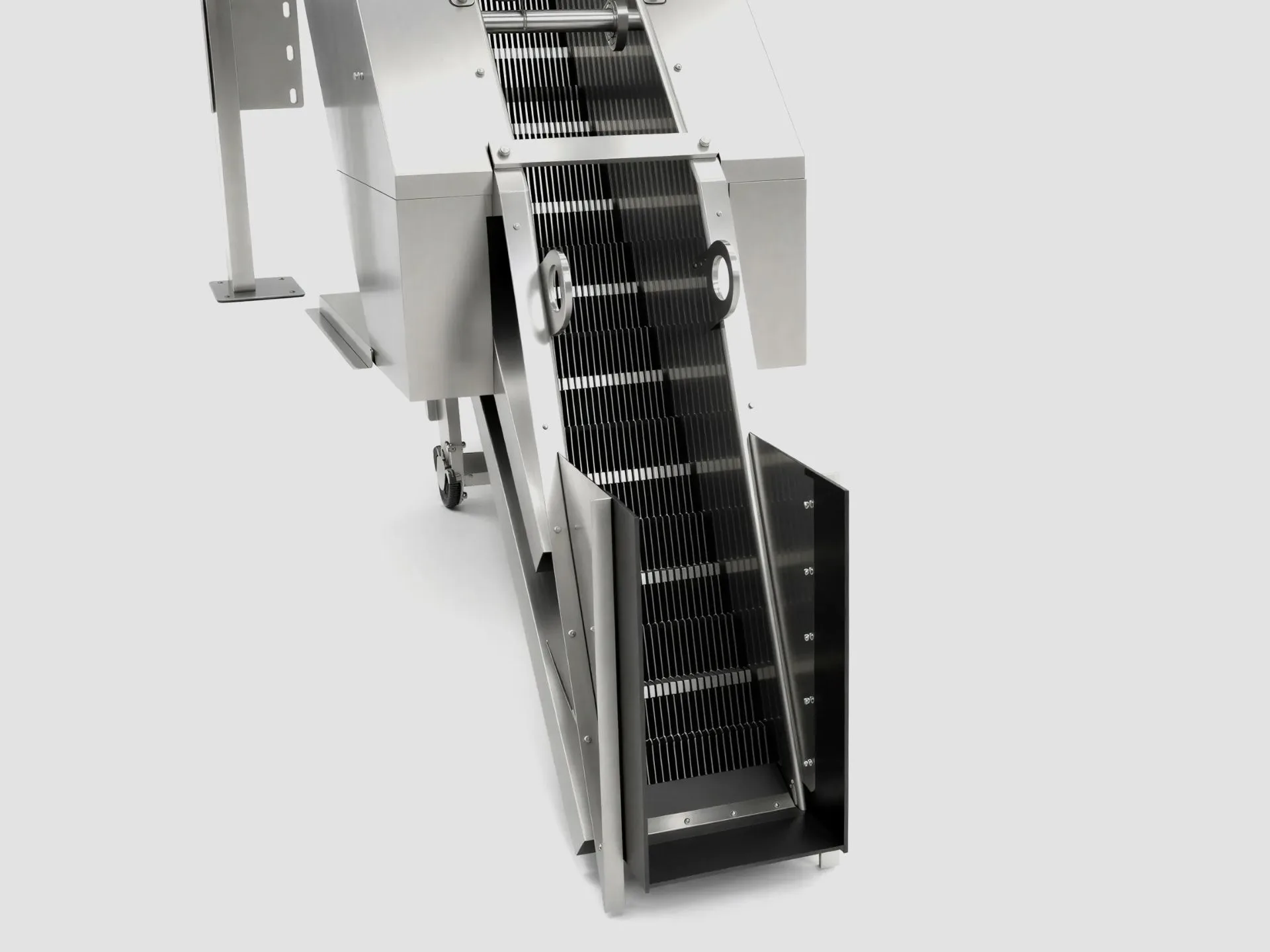

Filtering steps mounted on a chain, working in a cyclic motion
Hook spacing and density matched to the required degree of screening
Rotating brush that self-cleans the filtering elements
Screened solids fed to downstream equipment
Installation in deep and wide channels
Installation in pumping and sewage wells with limited space

Advantages

Self-cleaning of the filtering elements by a rotating brushProtection of the downstream process line against damage and cloggingRemoval of large solids: textiles, foils, municipal wasteDegree of screening set by hook spacing and densityInstallation both in large channels and in tight wells

Ask about this equipment

Technical data

Operating characteristics
Parametr	Wartość
Application	mechanical stage of a wastewater treatment plant
Solids removed	large solids (textiles, foils, municipal waste)
Operating principle	cyclic motion of steps mounted on a chain
Adjustment	hook spacing and density to the required degree of screening
Cleaning of filtering elements	rotating brush (self-cleaning)
Screenings discharge	fed to downstream equipment
Installation	deep and wide channels, pumping and sewage wells with limited space
